Overview

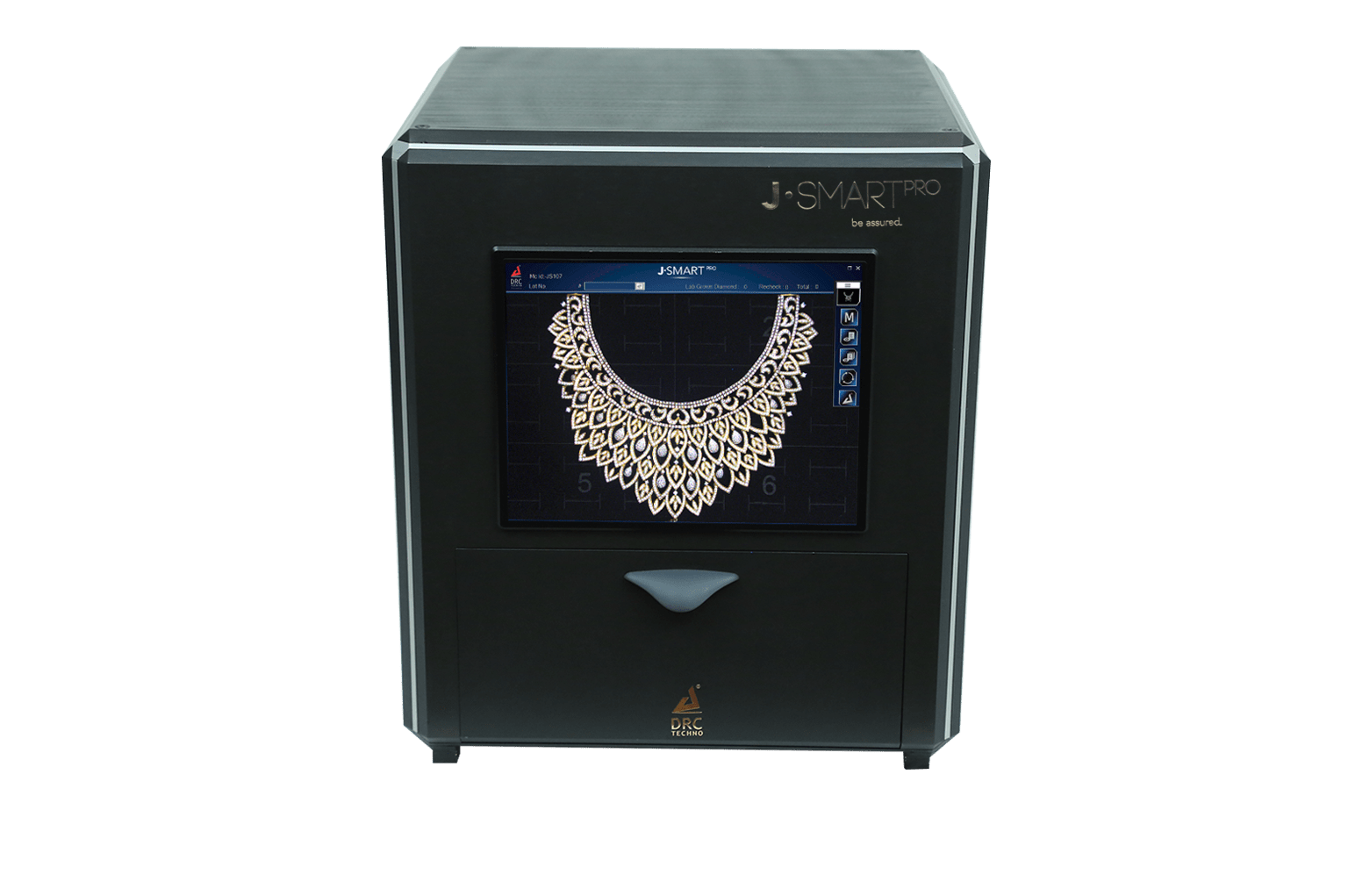

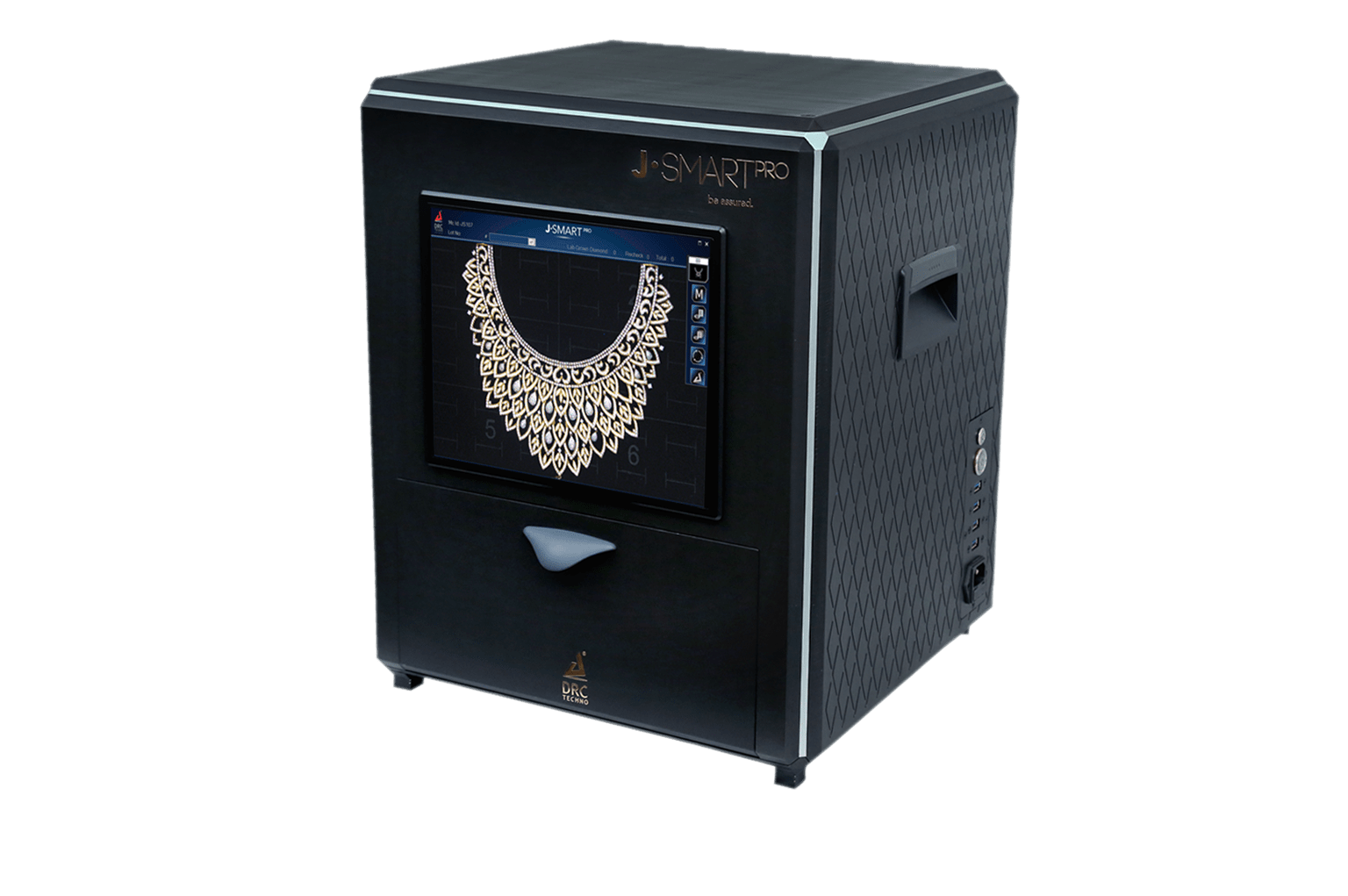

The Reveal Diamond Detector is an advanced, synthetic diamond screener designed for automatic testing of both mounted jewelry and loose stones. It efficiently identifies natural diamonds, CVD synthetic diamonds, and HPHT synthetic diamonds, ensuring accurate and reliable results. This high-tech device is perfect for jewelers and gemologists, offering detailed analysis with user-friendly operation.

The Reveal Diamond Detector doesn't just deliver cutting-edge technology – it elevates your workspace with its modern and elegant design. Its sleek, contemporary aesthetic seamlessly integrates with any environment, reflecting your commitment to professionalism and innovation. But beyond its stylish exterior lies a user-friendly core. Compact and minimalist in structure, the Reveal prioritizes both aesthetics and functionality. Its intuitive interface and straightforward operation minimize training time and maximize efficiency. Whether you're a seasoned gemologist or a rising star in the diamond trade, the Reveal empowers you with a seamless user experience that allows you to focus on what matters most – accurate and reliable diamond verification.

Key Features and Advantages

1. Versatile Testing: Capable of testing both mounted jewelry and loose stones as small as 0.002 carats.
2. High-Resolution Imaging: Equipped with a built-in high-resolution camera for detailed views.
3. Energy Efficient: Low current consumption ensures long-lasting usage.

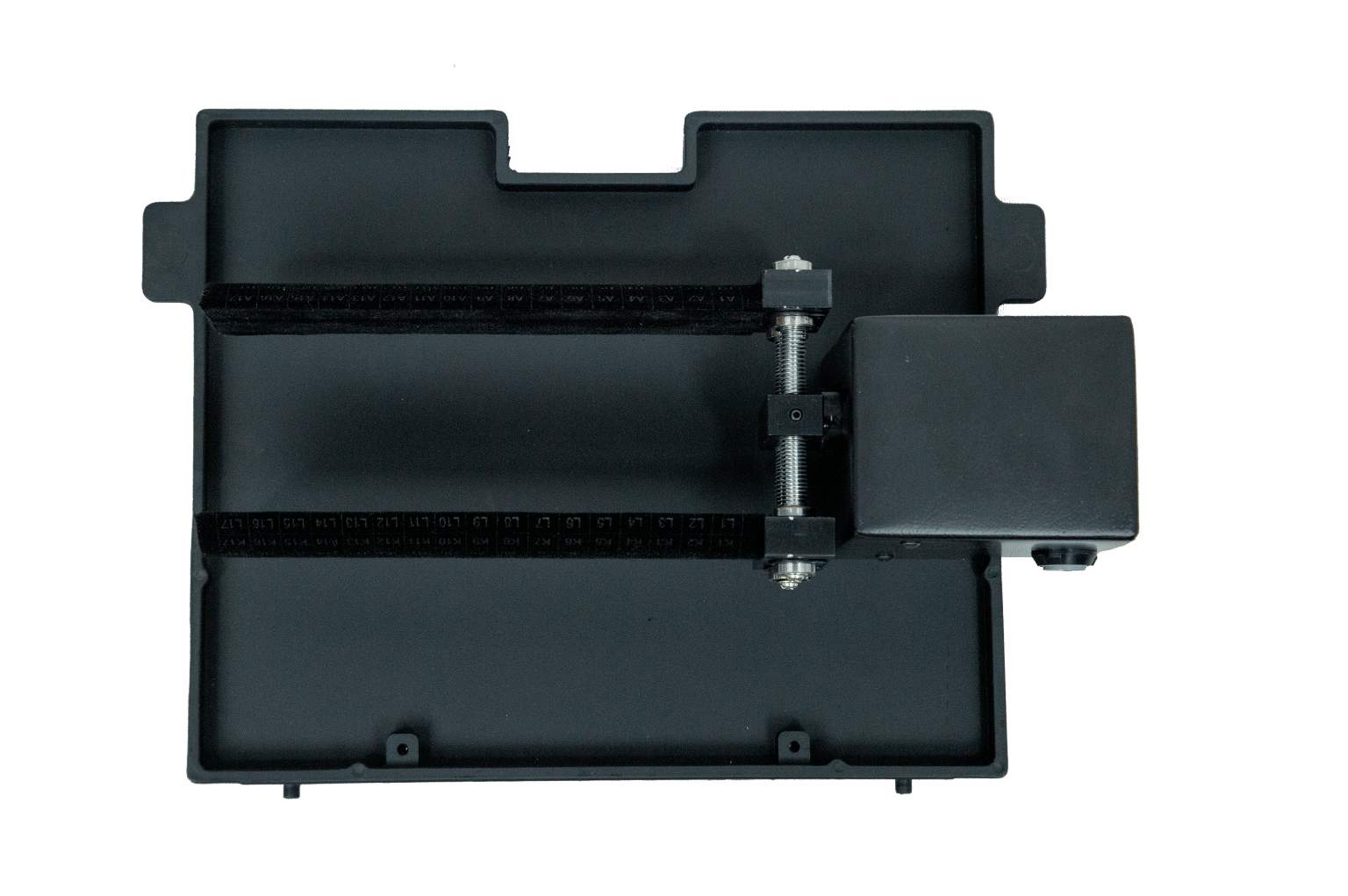

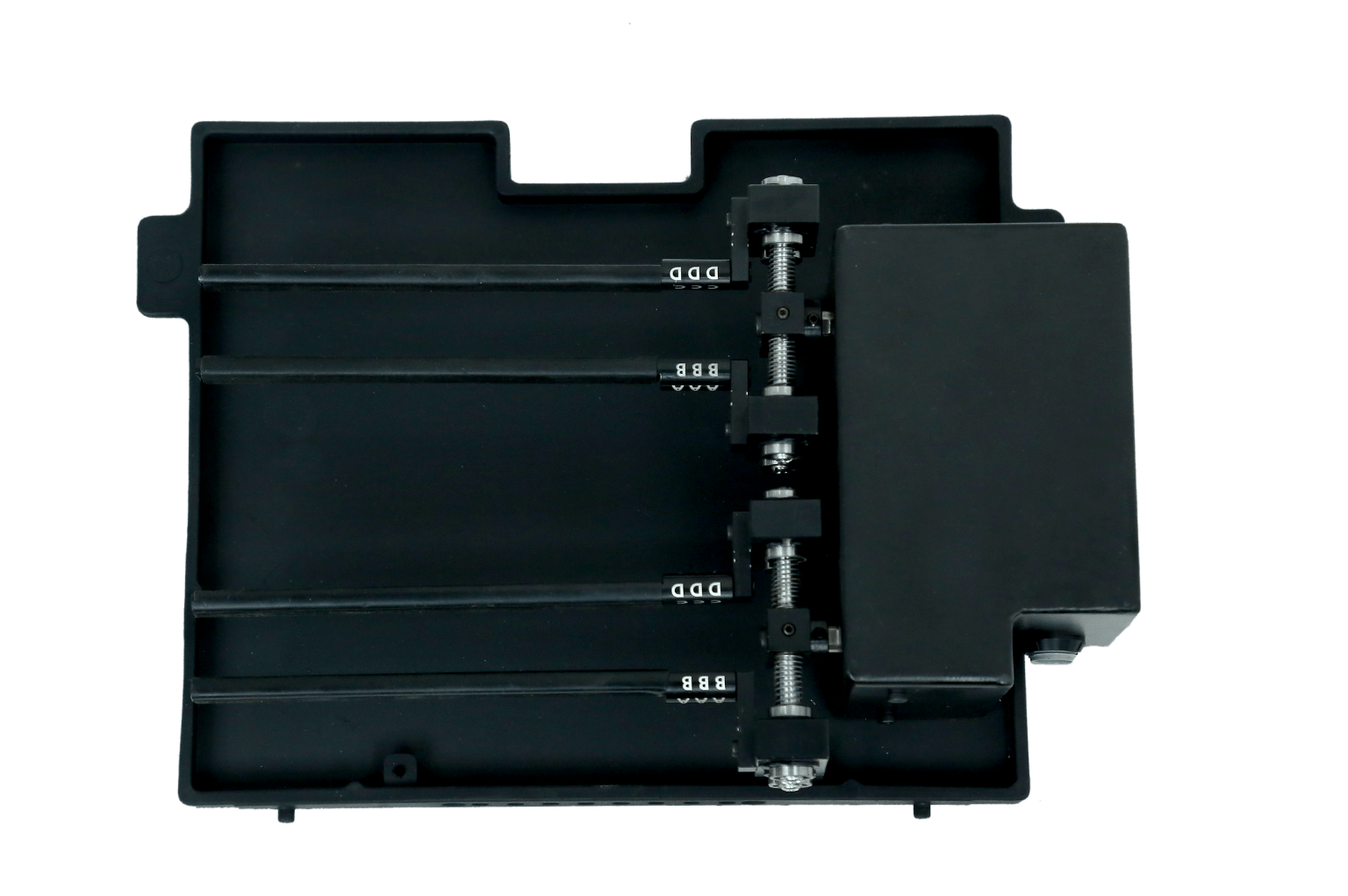

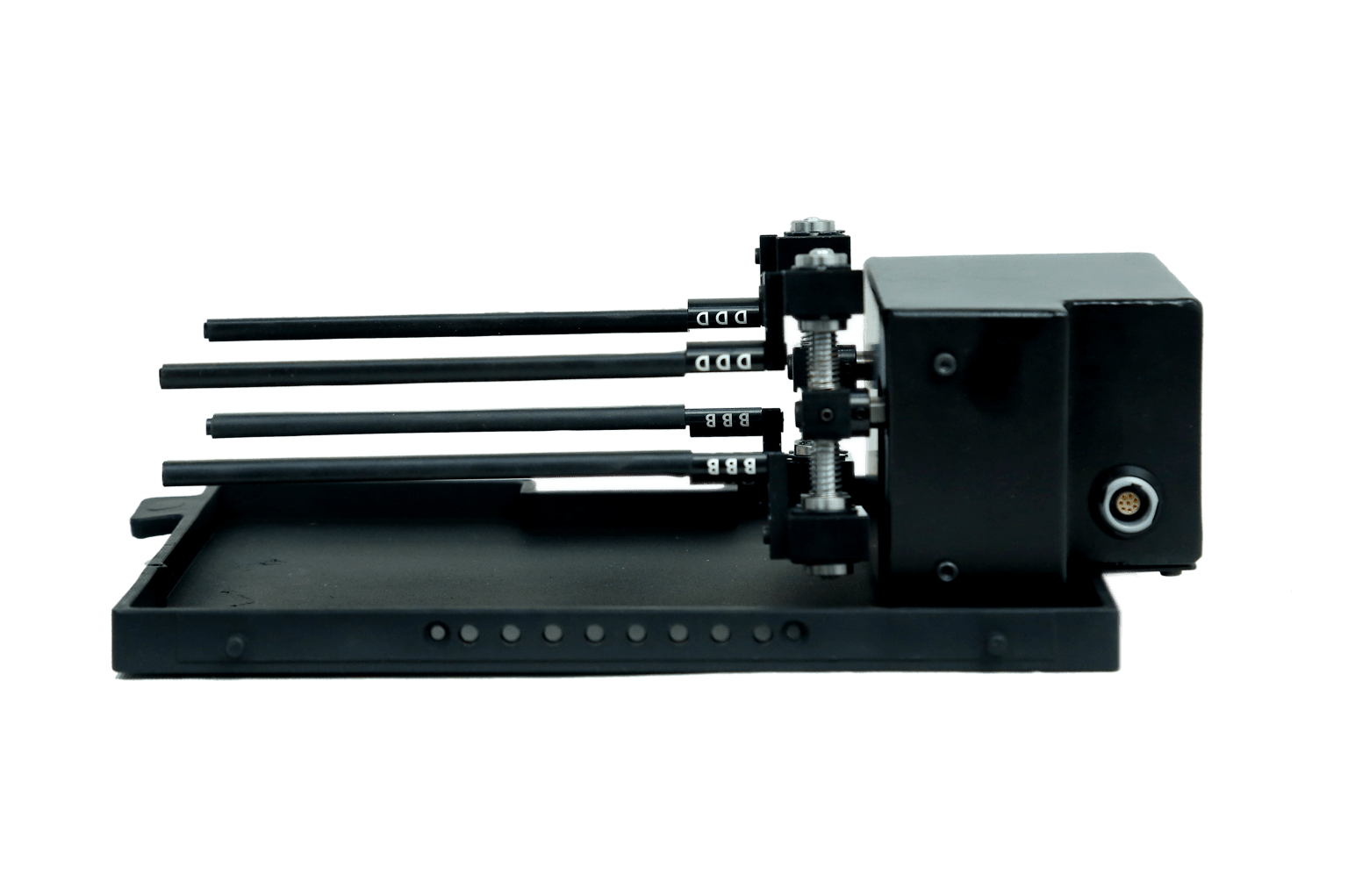

4. Comprehensive Analysis: Provides 360-degree views for rings and jewelry, uploads results to your cloud account, and offers both quick (15 seconds) and detailed (up to 4 minutes) analysis modes.
5. Bulk Testing: Can test stones inside transparent plastic bags, making it ideal for bulk testing.

Product Specifications

• Stones Testing Capabilities: Natural Diamond, CVD Synthetic Diamond, HPHT Synthetic Diamond
• Detectable Stone Colors: Colorless to Near Colorless (D-K)
• Minimum Detectable Stone Size: 0.002 carat
• Maximum Stones per Test: Approximately 1200 loose 0.02 ct stones
• Testing Duration: 15 seconds for Quick Analysis, up to 4 minutes for Detailed Analysis
• Device Dimensions: Height 19 cm, Width 20 cm, Depth 24 cm
• Weight: 5.0 ± 0.2 kg
• Power Specifications: 100-240 V, 50/60 Hz with TYPE-C power cable
• Visual Output: 1920x1080 full HD
• Operating System: Raspberry Pi
• Device Memory: 8 GB processor, 32 GB storage

Installation and Setup

To set up the Reveal Diamond Detector:

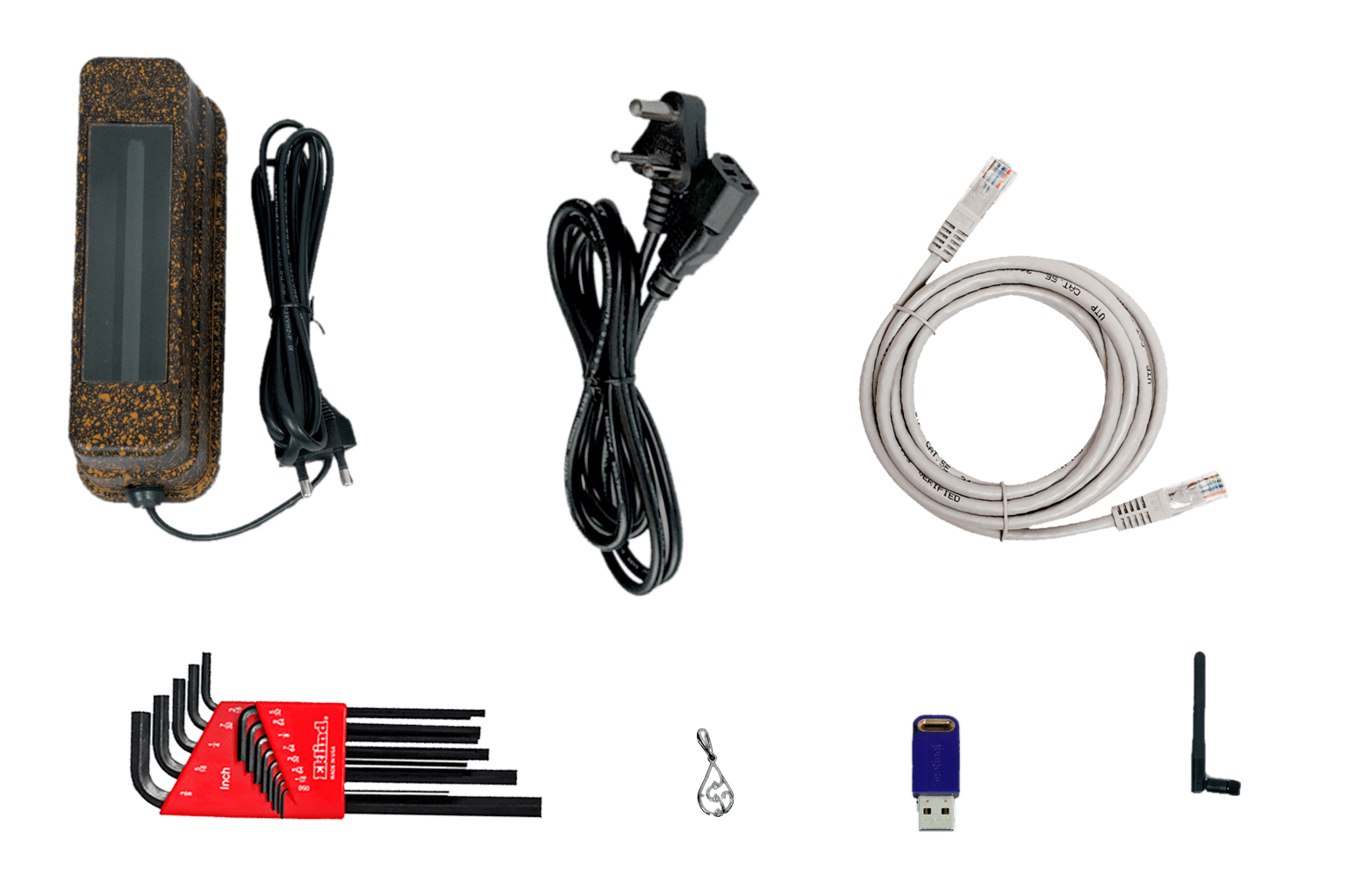

1. Connect the power cable to the USB-C port and a power outlet.
2. Connect the HDMI cable to the desired screen.
3. Attach a mouse and/or keyboard via the USB port.
4. Connect the LAN cable if using a wired network; otherwise, set up Wi-Fi.
5. Press the power button and follow the on-screen instructions to complete the setup.

Testing and Analysis

Running a Test:

1. Place the sample in the analysis area and close the detector door.
2. Focus the image using the auto-focus button or adjust manually for clarity.
3. Select either Quick or Detailed Analysis mode.
4. The results will be displayed on the screen, showing whether the diamonds are natural or lab-grown.

Sample Placement:

• Ensure jewelry and stones are placed flat and not overlapping for the best results.

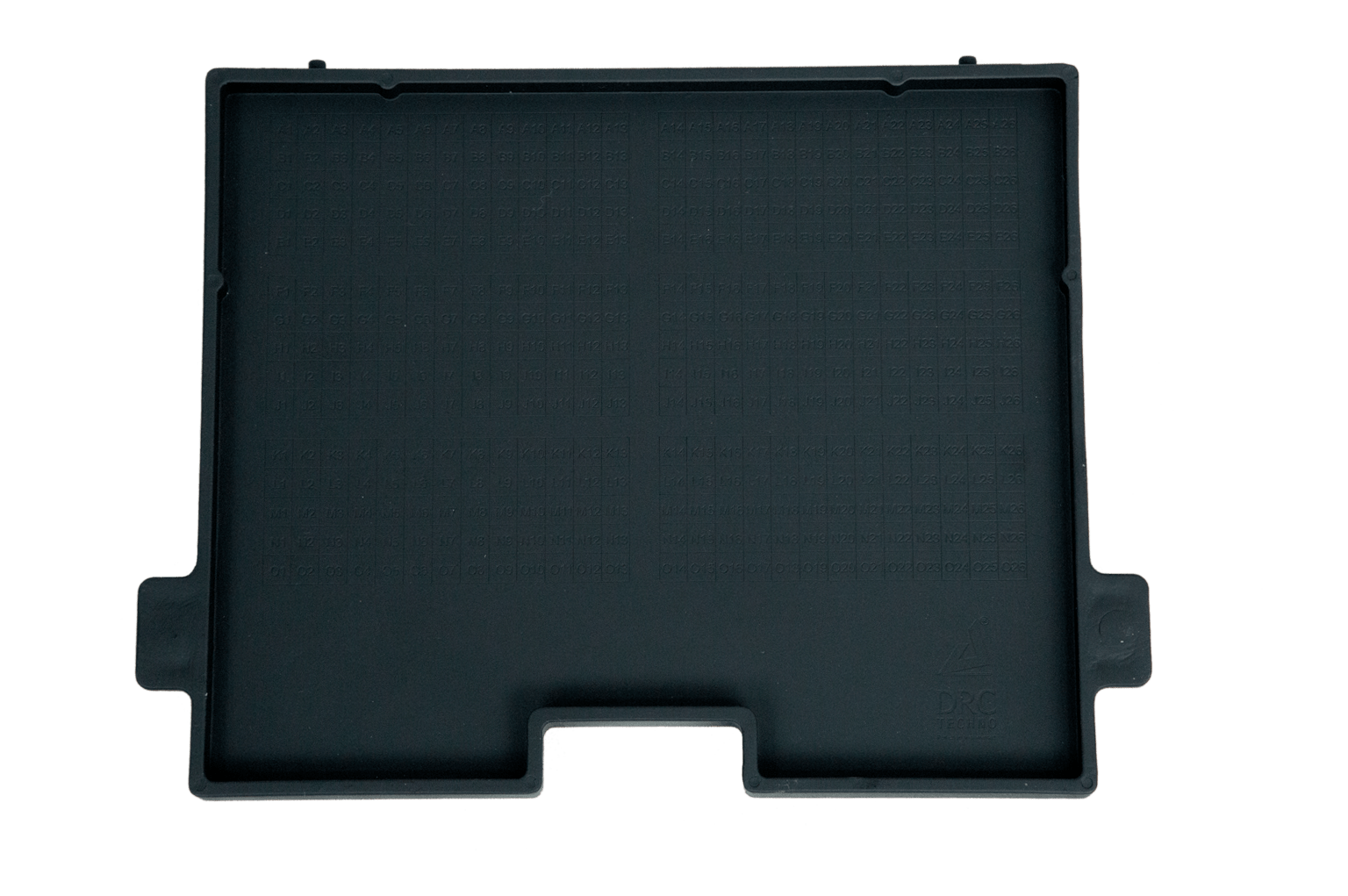

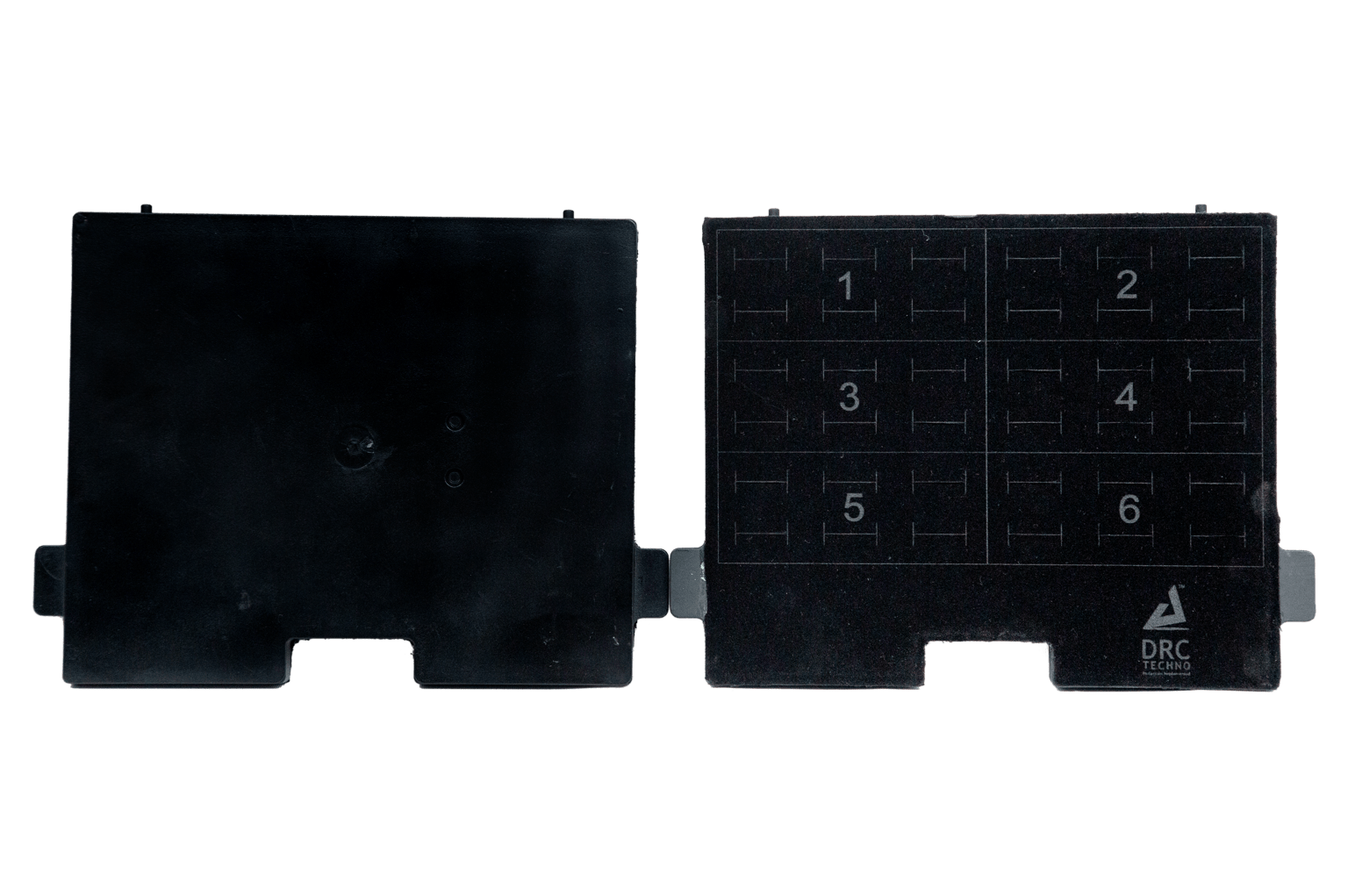

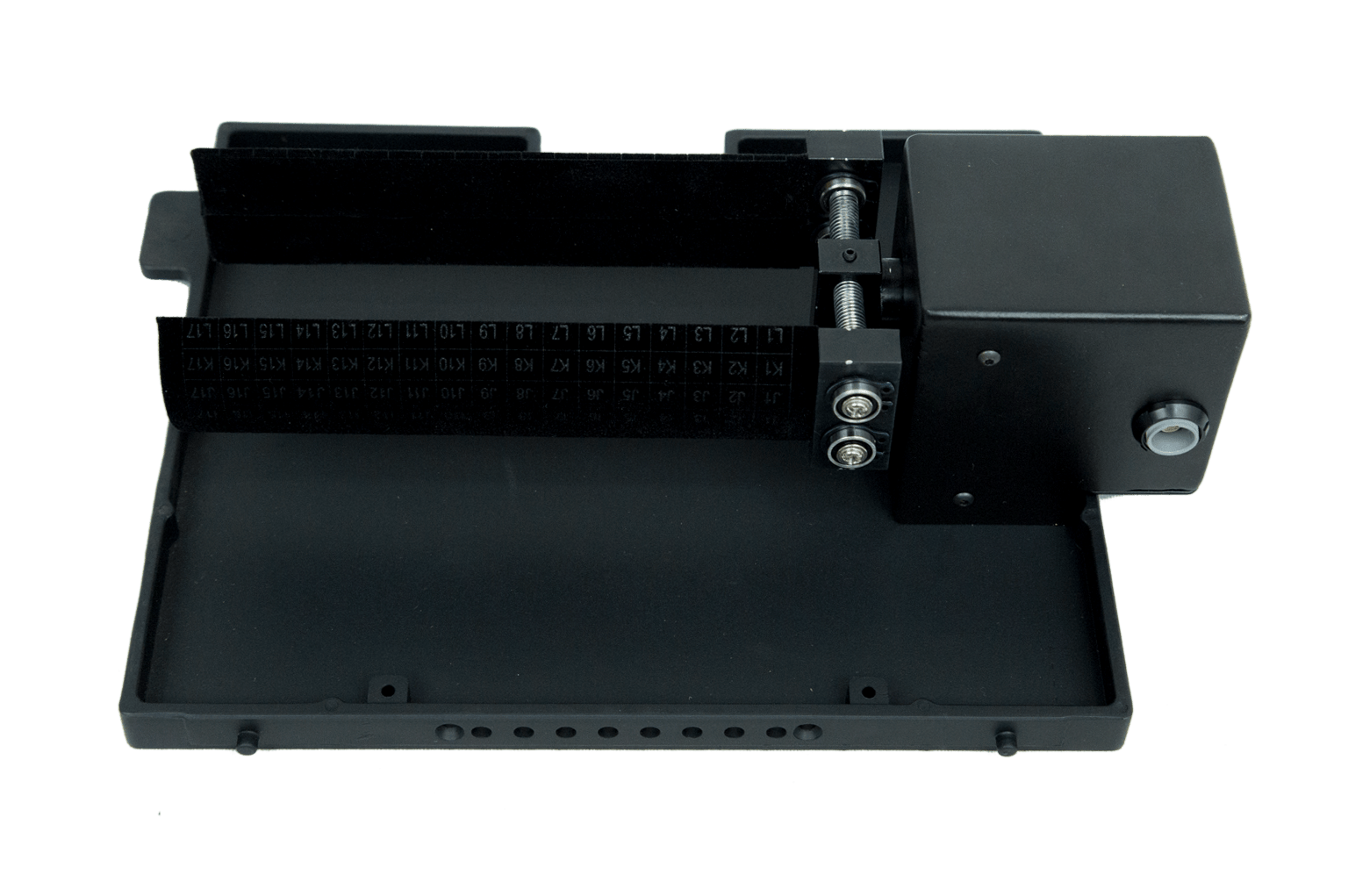

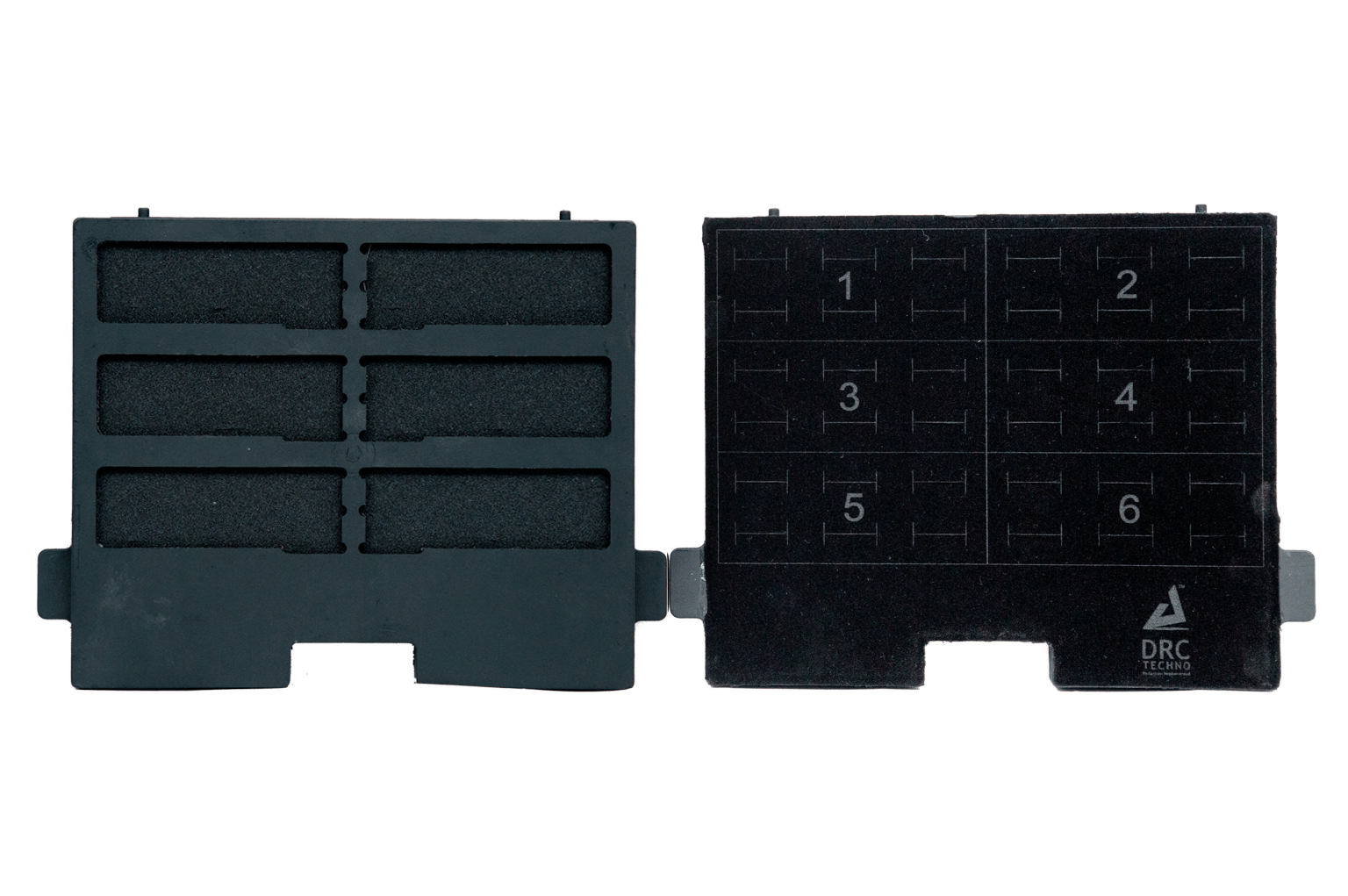

• Use specific trays for different sizes and types of stones to avoid interference from nearby samples.

Result Interpretation:

• Natural diamonds reflect only blue light.
• Lab-grown diamonds reflect non-blue light or are marked red.
• Adjust exposure and sensitivity settings to refine the result images.

Maintenance and Safe Handling

To maintain optimal performance:

• Keep the detector in a dust-free and dry environment.
• Store properly when not in use, within specified temperature ranges (32° to 95° F for operation, -4° to 113° F for storage).
• Regularly check for software updates to ensure the device runs smoothly.

Troubleshooting and Support

For any issues, contact customer support via email at [email protected] or phone at 1-212-869-9525.
